[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine

Share

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine

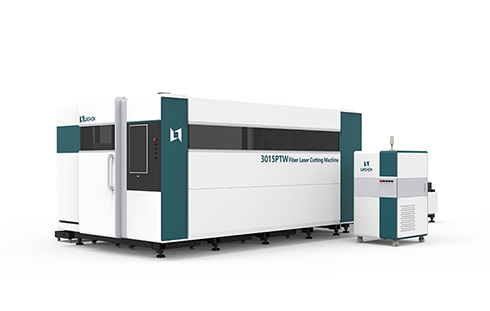

Machine ModelLX3015PTW(4015/6015/4020/6020/6025/8025/10025 optional)
Power of Generator3000-12000W
Dimension4967*8817*2440
Working Area1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy±0.02mm
Max Running Speed120m/min
Max Acceleration1.5G
Specified Voltage And Frequency380V 50/60HZ


Exchange Table

It adopts an up and down exchange platform;

The converter is responsible for controlling the exchanging motor;

The machine is able to finish the platform exchanging within 15s.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Rotary Length:6m standard,8m and other size can be customized.

Rotary Diameter:160/220mm is standard. Other size can be customized.

Chuck:Both pneumatic control

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine

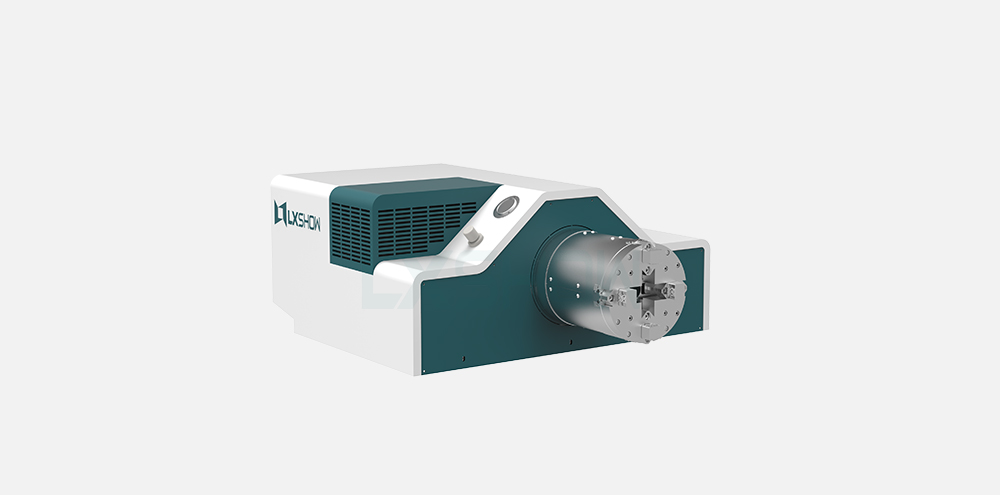

Pneumatic Chuck Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.


High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.



Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Full coverage, super suction
Adopt the latest cutting-edge tobacco control technology
Each section of the bed has a smoke exhaust device



Powerful negative pressure 360° adsorption
Axial fan wind direction surrounds blowing smoke downward
Full 360° strong adsorption and consistent smoke exhaust
Effectively purify the smoke and dust on the top of the enclosed cutting platform
Improve purification efficiency and reject lens contamination



Net follow-up, wisdom grows by quality
The smoke exhaust device automatically senses the laser cutting position
Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke.

[LX3015PTW] 1000-20000W Sheet and pipe laser cutting machine LX3015PTW laser iron cutting machine


Monitoring system

Real-time observe the machine running through the panel
